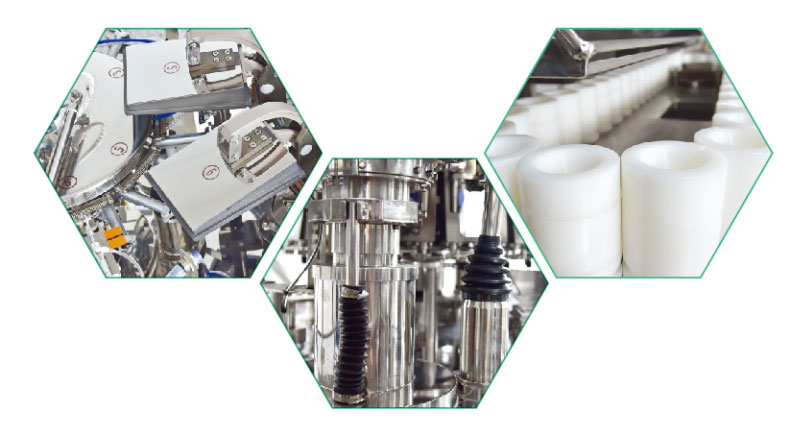

Mechanical drive
CAM lifetime warranty
Bag width automatic adjustment
Gas plate lifetime warranty
Automatic lubrication system
Aviation aluminum carving and milling vacuum chamber
Products such as chicken legs, duck necks, duck paws, bamboo shoot tips, dried eggs, dried tofu, brushed egg whites, squid, etc. are mainly in the form of one, two,three equal quantity units of product are bagged.
Bagging of chicken thighs, duck feet, sausages, meat cubes, eggs, dried beans, chicken breasts, beef jerky, seafood and other products, mainly in the form of one, two, three and other quantities.
1. The appearance design is reasonable, beautiful, efficient, energy-saving and environmentally friendly. The packaging speed depends on the product. Its core power cam is made of materials imported from Japan. After 21 processing steps, the surface layer is wear-resistant and elastic. The cam is easy to maintain and clean, has a service life of up to fifty years, and comes with a lifetime warranty.
2. All parts of the equipment comply with relevant national standards and are mainly equipped with imported electrical components. All parts that come into contact with food or packaging are made of food-grade 304 stainless steel or 316 stainless steel, as well as other materials that meet food hygiene requirements. Ensure food hygiene and safety.
3. The equipment is easy to operate and adopts advanced PLC and POD electrical control systems and mechanical transmission systems to realize automatic bag taking, manual feeding, automatic loading, automatic vacuuming, automatic sealing, and automatic unloading.
4. The vacuum air-holding device of the equipment is made of synthetic materials jointly developed by our company and Germany, which can achieve zero friction and zero wear during the vacuum packaging process, and provides a lifetime warranty.
5. The equipment has its own lubrication system with a built-in lubricating oil tank. The system can recover and filter excess oil to achieve recycling and extend the service life of the equipment.
The main function:
●PLC control system ●Blanking detection ●Output system
●Automatic alarm ●Bag mouth cleaning ●Bag loading device
●Vacuum system ●Bag opening device ● Heat sealing control
● Bag opening detection ●Temperature monitoring ●Unloading device ●Water cooling device
|
Model number |
YD1014-1018 |
YD1014-1318 |
YD1012-1018 |
YD1012-1318 |
YD1010-1318 |
|
Packing bag material |
Aluminum foil, four-sided sealing flat bags, vertical bags, zipper bags, paper bags and other composite bags |
||||
|
Packing bag specification |
W：50-100mm L：60-180mm |
W：55-130mm L：60-180mm |
W：55-130mm L：60-180mm |
W：55-130mm L：60-180mm |
W：55-130mm L：60-180mm |
|
Packing speed |
90-105bags |
85-100bags |
80-95bags |
75-90bags |
50-65bags |
|
Driving mode |
Mechanical transmission (CAM gear bar full mechanical mode) |
||||
|
Main engine weight |
2.5T |
2.6T |
2.4T |
2.5T |
2.2T |
|
Air consumption |
≥0.8m³/min |
≥0.8m³/min |
≥0.8m³/min |
≥0.8m³/min |
≥0.8m³/min |
|
Power |
≈9KW |
||||
|
Driving power supply |
380V three-phase five wire 50HZ |
||||
