YD-160S High Speed Premade Pouch Packing Machine

Name: YD-160S High Speed Premade Pouch Packing Machine
Brand: ELEMOTION
SKU: 00018
Rating: 4.1 (59 reviews)

Packing Speed：60 - 80 bags/min

Pouch Dimension：W：60 - 160mm L：100 - 300mm

Dimension：1665 x 1295 x 1310mm（L x W x H)

Work Process

①bag feeding ②code printing（optional）③open the bag ④material feeding ⑤material feeding ⑥material feeding ⑦bag pulling ⑧seal ⑨seal ⑩seal

Get to know us

Download

Product Description

Equipment and materials: 304 stainless steel (part in contact with food)

Pneumatic components: FESTO, Germany (standard parts), adek, Taiwan (non-standard parts)

Driving mode: Mechanical transmission (cam gear lever full mechanical mode)

Measurement method: Shrinkage cup metering,bowl feeding, combined scale, etc. (optional)

Main Technical Parameters

Machire medel	YD-160S		YD-230S
Equipment and materials	304 stainless steel (part in contact with food)
Pneumatic components	FESTO,Germany (standard parts) ,adek,Taiwan (non-standard parts)
Drwing mode	Mechanical transmission (cam gear lever full mechanical mode)
Measurement method	Snrkage aupmeteing,mervalfeedng, ful-atonalic scew metering autcmaic feecdirg metering of marinated eggs. canbred scae,etc.(cplicral)
Applicable materials	Candied pastries,melon seeds, peanuts, fred nuts, expanded proaucts, proctucis in smal bags and arge bags,etc. (no vacurm pumping)
Worklow	①Bag loading ②reserved space ③bag opening and bag supporting ④blanking i⑤blanking ii ⑥blanking ⑦straightening ⑧sealing i⑨sealing ii ⑩sealing iii
Sealing method	According to the product,two seals can be used to ensure that the seal is beautiful and firm
Packaging speed	60 packs~80 packs /min(depending on the product itself and the charge)

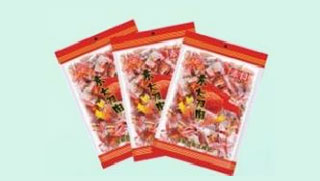

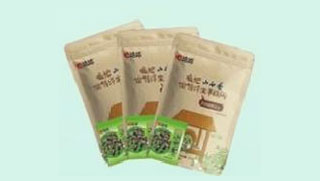

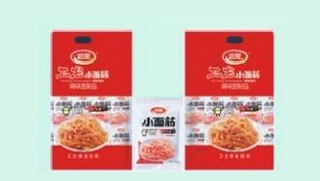

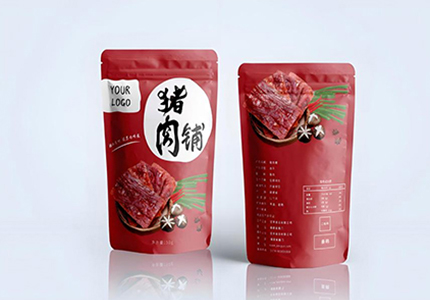

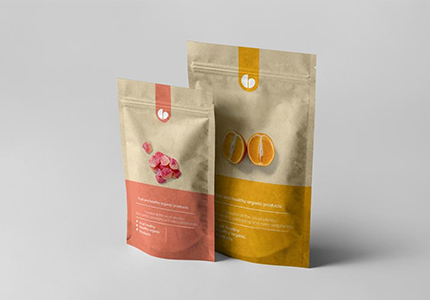

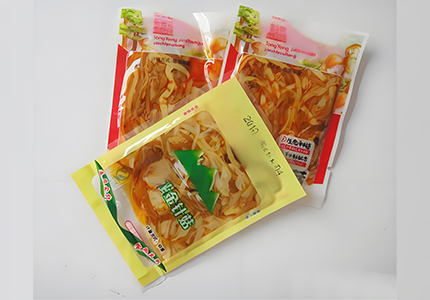

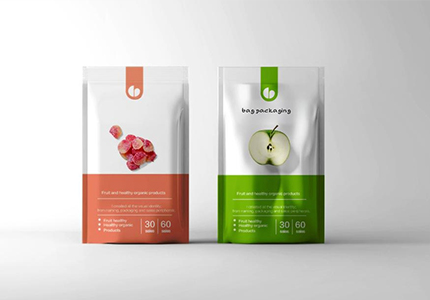

Packing bag materials	Self standing bag, zipper bag, four side sealed bag, three side sealed bag, paper bag (surface coated with paper), etc
Bag specification	W60mm*160mm	L100mm*300mm	W80mm*230mm	L100mm*350mm
Total powe	Main engine power =4KW		Main engine power =4.5KW
Gas consumption	0.6m³/min
Driving power supply	Three phase 380V 50HZ (non-national standard three-phase 380V 60HZ)
Machine shape	1665mm1295mm1310mm (LWH) (excluding hoist)		1630mm1490mm1350mm (LWH) (excluding hoist)
Machine weight	1.5T (Host)		1.8T (Host)
Use environment	Room temperature 10C-40 ℃,30～90%RH,no dew,corrosive gas,dust and other harsh environments

Some Optional Accessories

Metering and Bl anking System

Enhancement System

Material Handling and Conveying System

Belt-Combined-Scale

Flammulinavelutipeshorizontal-Filling-Machine

Combination-Scaleautomatic-Feeder

Liquid-Filler

Horizontal-Mixingfilling-Machine

Braised-Egg-Automoaticfeedert

Liquid-Filling-Machine

Scrod-Filling-Machine

Ring-Feeder

Screw-Dischanrger

Shrinking-Cup-Automaticfeeder

Three-Push-Feeder

Adjustable-Climbing-Hoist

Bowl-Elevator-(Plastic)

Bowl-Elevator-(Stainless-Steel)

Bowl-Elevator-(Plastic)

Powder-Screw-Elevator

Bucket-Storage-Hoist

Scraper-Elevator

Z-Type-Elevator

Tipper-Elevator

Screw-Hoist

Working-Platform

Centrifugal-Disk

Chain-Plate-Conveyor-Belt

Horizontal-Conveyor-Line

Material-Line

Material-Tray

Roller-Conveyor

Stainless-Steel-Conveyor-Belt

S-Type-Conveyor

Vibrating-Feeder

Wheel-Conveyer-Belt

Optional Supporting Equipment

Ink Jet Printer

ELEMOTION innovatively combines triple anti-clogging nozzle technology, intelligent automated control system and high-precision printing functions to create an efficient and stable all-in-one packaging solution.

Laser coding machine [optical fiber]

Adopting waterproof, oilproof and corrosion-resistant structure, integrated intelligent leakage alarm system and high-precision laser coding module, combined with coding clarity auxiliary design.

Laser coding machine [C02]

Innovative integration of compact built-in smoke purification system, intelligent three-state alarm system, energy-efficient maintenance-free laser module and gas-controlled auxiliary coding tooling.

Ink Jet Printer

High-speed and high-precision dynamic inspection system, equipped with intelligent multi-stage rejection system, industrial-grade man-machine interaction terminal, equipped with dual-interface data center.

Laser coding machine [optical fiber]

Adopting all stainless steel material, together with the original phase tracking, product tracking and automatic b alance correction functions, the detection sensitivity and stability is improved. New dual-channel detection, high and l ow-frequency switching and other functions.
